Calpeda MXV vertical multistage pumps

Comments 0 by in standard
March 4, 2015

We can supply pumps and spares from the entire Calpeda MXV vertical multistage pump range, including the MXV-B ranges.

Typical applications include boiler feed pumps, and here we have a picture of two pumps installed in Daelim Boilers.

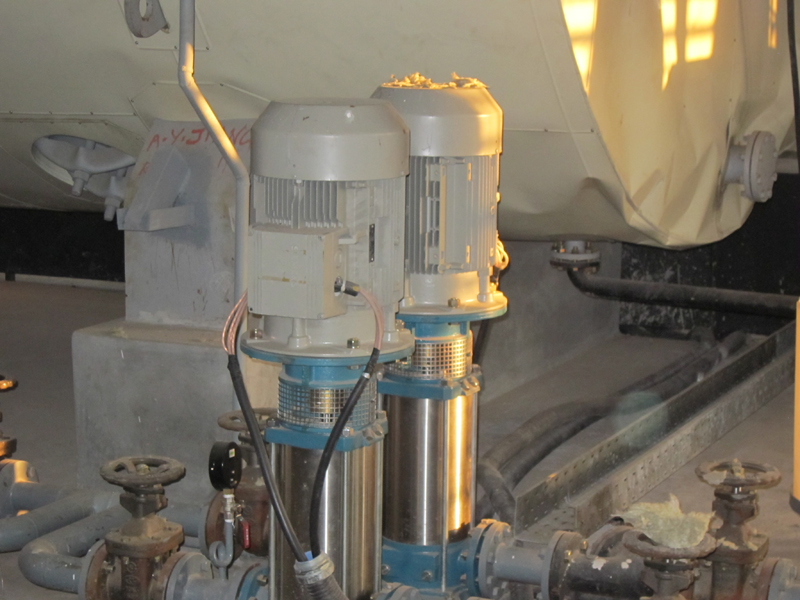

Calpeda MXV pumps on site

These particular models are driven by Siemens electric motors, but Calpeda also manufacture their own electric motors.

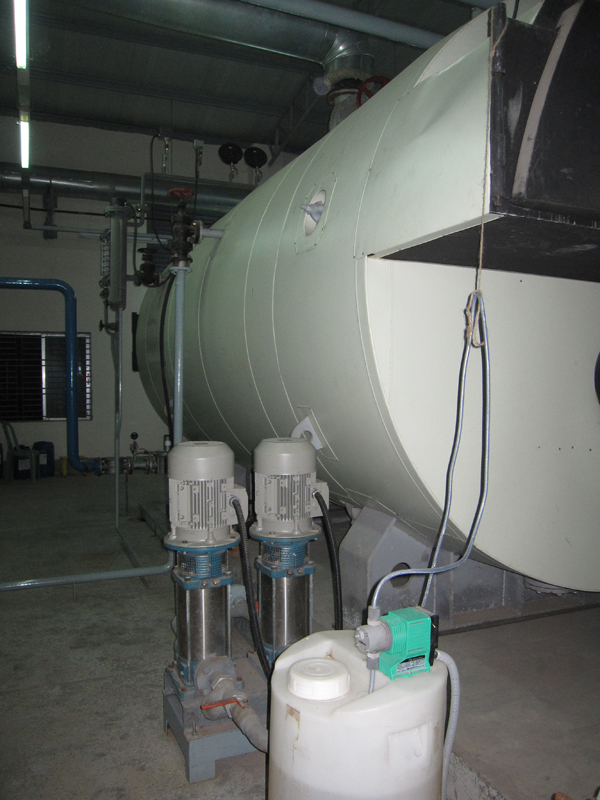

Calpeda MXV pumps on site 2

The above photograph also shows a small dosing pump sat on top of a small chemical container.

We supply dosing pumps from Prominent, Etatron, AWE, GEE, Emec and Jesco.

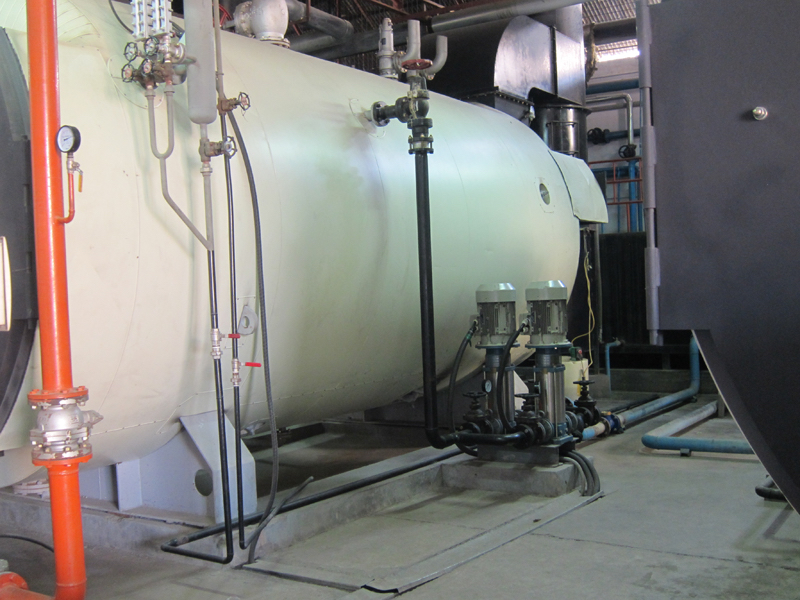

Calpeda MXV on site 4

One of the great features that we like about the MXV pumps is the inclusion of a top pump bearing just below the pump/motor coupling. This makes changing the electric motor very simple. On most manufacturer’s pumps the pump shaft has to be raised before tightening up the coupling bolts, and if the maintenance engineer is unaware of this, the impeller stack can foul against the diffuser chambers and literally shred the pump. No such problem here, as the pump shaft height is already set, so undo four motor flange bolts, and loosen the coupling bolts, remove the pin and the electric motor can be removed. Just reverse the process to refit the motor. It’s simple but well thought out features such as this that in our minds makes Calpeda stand out from the crowd.

For pdf data sheets, please click on the links below :

MXV data sheets_ipm 2015

instruction_MXV_ipm 2015

Please do not hesitate to contact to for any further information on these or any other pump in our ranges.

See contact page for email and telephone numbers.
